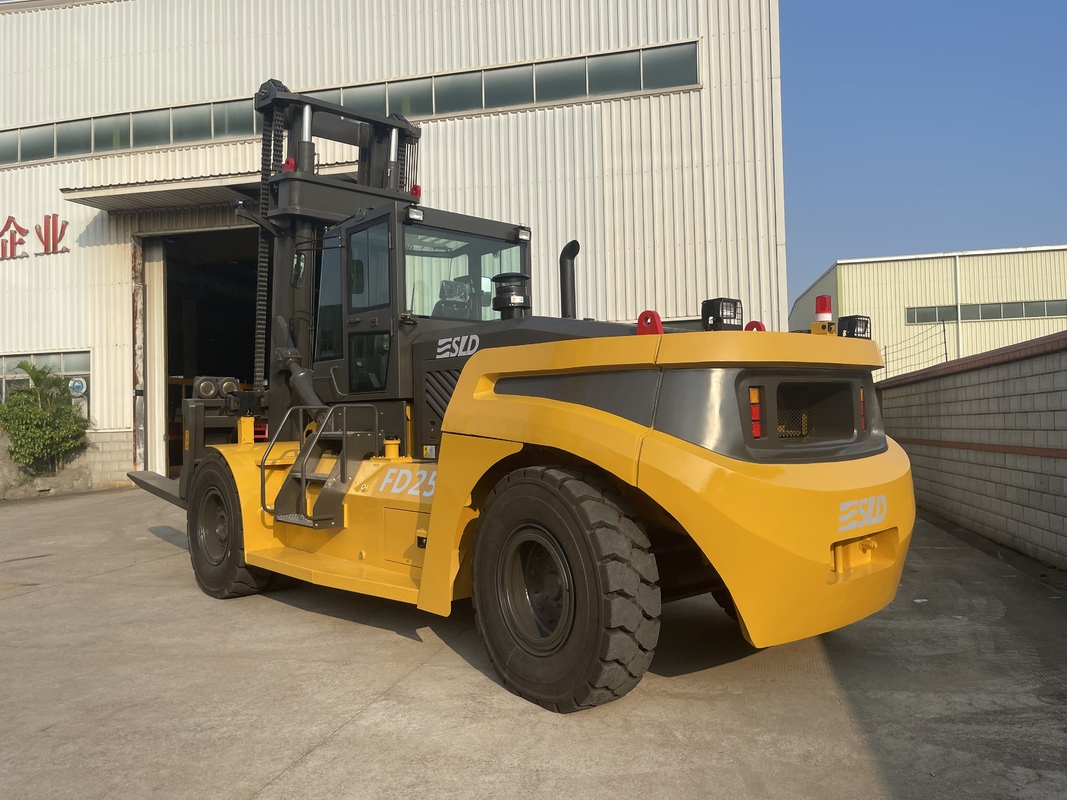

15000kgs Rated Load Heavy Load Forklift for Heavy Duty and Customization

15000kgs Rated Load Heavy Load Forklift for Heavy Duty and Customization
15000kgs Rated Load Heavy Load Forklift for Heavy Duty and Customization

Grote Afbeelding :  15000kgs Rated Load Heavy Load Forklift for Heavy Duty and Customization

Productdetails:
Place of Origin: China
Merknaam: SLD
Certificering: ISO, CE
Betalen & Verzenden Algemene voorwaarden:
Minimum Order Quantity: 1 unit
Prijs: onderhandelbaar
Packaging Details: 40FR containers
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
Contact
Gedetailleerde productomschrijving
MOTOR: Yuchai of cummins snelheid: 0-20 Km/h
Tilthoek: 45-90 graden Opties: Zijdelingse schakelaar, vork positioner
Overdragen: Hydraulisch Garantie: 1-2 jaar
Mast het opheffen hoogte: 3000 mm OEM: Aangepast
Markeren:

15000kgs heavy duty forklift

,

heavy lift forklift with customization

,

heavy duty forklift for industrial use

1. Who Orders Custom-Speed 15-Ton Trucks?

✔ Steel mills – low-speed, high-torque coil handling
✔ Port terminals – 28 km/h dash between quay and stack
✔ Precast yards – 20 km/h on uneven concrete
✔ Mining support – 12 km/h uphill with 25 % grade
✔ Logistics fleets – mixed Eco/Hi-Speed pairs under one parts list

Technical Parameters:

Parameters: Vehicle configuration   FD150
Performance Rated load   15000
Load center   600
Mast tilt angle (front/rear) º 6/12
Overall dimensions Length mm 7200
Width mm 2550
Height mm 3460
Mast lifting height mm 3000
Fork size (L*W*H) mm 1800X200X90
Min. turning radius mm 5050
Max. travel speed (with load) Km/h 22
Lifting speed (with load) mm/s 240
Gradeability (with load) % 20
Weight Kg 17000
Tyre Front   4X12.00-24/20PR
Rear   2X12.00-20/18PR
Wheel tread Front mm 1850
Rear mm 2130
Wheelbase mm 3600
Min. ground clearance mm 270
Engine Model   YC6J175-T302
Rated power KW 129
Max. torque N.m 710



2. Core Advantages

2.1 15,000 kg Heavy-Load Capacity

  • 80 mm heel, Grade-100 forks
  • Overload valve + load-moment cut-off
  • Duplex mast 3,000 mm (triplex 4,500 mm opt.)

2.2 Customizable Speed Modes

  • Factory-mapped ECM: choose 0–12, 0–20 or 0–28 km/h
  • Same hydrostatic transmission, different pump displacement
  • ECO mode saves 18 % fuel vs 28 km/h map

2.3 Multi-Power Platform

  • Diesel: Cummins QSB 6.7 Stage V, 200 L tank = 12 h
  • LPG: Dual-fuel PSI 2.4L, 70 L bottle, indoor zero-soot
  • Li-ion: 80 V 920 Ah, 2 h fast-charge, -30 °C package

2.4 Heavy-Duty Frame

  • 20,500 kg service weight = no extra counterweight
  • 25 % gradeability fully loaded
  • Solid pneumatic tires 12.00-24 PR20 (super-elastic opt.)

3. Safety & Comfort

  • ROPS/FOPS cabin 74 dB(A)
  • Suspension seat with 3-point belt
  • Rear-view camera + 10-inch dash
  • LED light package 360°
  • Hill-hold & neutral-start safety

label:

FD250 Vorkheftruck,

Vierwielige Vorkheftruck,

25t vorkheftruck
