Fork Attachments High Capacity Forklift with Tilt Angle 45-90 Degrees and Increased Lifting Power

Alle producten
Zware Liftvorkheftruck (184)
Diesel Vorkheftruck (52)
elektrische vorkheftruck (21)
De Stapelaar van het containerbereik (55)
Lege Containermanager (38)
De Vorkheftruck van benzinelpg (10)
ruwe terreinvorkheftruck (11)
Zijladervorkheftruck (8)
Vorkheftruckvervangstukken (13)
Vorkheftrucklader (11)
Telehandler Telescopische Vorkheftruck (9)
Certificaat
China Xiamen Sealand Development Co., Ltd. certificaten
China Xiamen Sealand Development Co., Ltd. certificaten
Klantenoverzichten
Bevolen SLD 12 ton en 16 ton forklifts, goede kwaliteit, de perfecte dienst, die zich op meer samenwerking verheugen.

—— Mohammad Asharf

SLD 30 ton vorkheftruck, het mijn goede keus was, zal meer forklifts kopen.

—— Ricky So

Ik ben online Chatten Nu

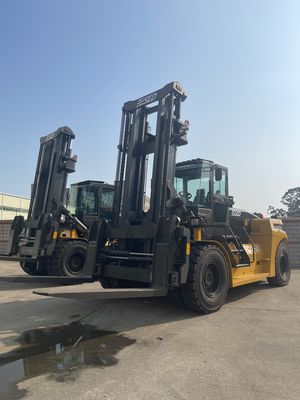

Fork Attachments High Capacity Forklift with Tilt Angle 45-90 Degrees and Increased Lifting Power

Fork Attachments High Capacity Forklift with Tilt Angle 45-90 Degrees and Increased Lifting Power
Fork Attachments High Capacity Forklift with Tilt Angle 45-90 Degrees and Increased Lifting Power

Grote Afbeelding :  Fork Attachments High Capacity Forklift with Tilt Angle 45-90 Degrees and Increased Lifting Power

Productdetails:
Place of Origin: China
Merknaam: SLD
Certificering: ISO, CE
Betalen & Verzenden Algemene voorwaarden:
Minimum Order Quantity: 1 unit
Prijs: onderhandelbaar
Packaging Details: 40FR containers
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
Contact
Gedetailleerde productomschrijving
OEM: Aangepast Mast het opheffen hoogte: 3000 mm
Nominale belasting: 15000kgs Stuurtype: Voor- of achterwiel
Overdragen: Hydraulisch Tilthoek: 45-90 graden
Kleur: Oranje-rood, op maat. Laadcentrum: 600 mm
Markeren:

high capacity forklift attachments

,

forklift with 45-90 degree tilt

,

heavy lift forklift with warranty

1. Key Advantages

1.1 45–90° Hydraulic Tilt

  • Twin double-acting cylinders
  • 5° incremental locking (operator can hold any angle)
  • Counterbalance valves prevent drift

1.2 Increased Lifting Power

  • 25 % thicker fork shank (80 mm)
  • Upswept heel reduces stress concentration
  • Net effect: +25 % safe working load vs standard 50 mm forks

1.3 Hydraulic Fork Positioner Built-In

  • Spread 200–1,400 mm in 2.5 s
  • Sideshift ±100 mm (no lost load centre)
  • ±2 mm repeat accuracy

1.4 Quick-Hook Design

  • Drop-on in 3 minutes – no welding
  • Automatic locking pins (safety ISO 2328)
  • Fits 10–16 t forklifts: Hyster, Kalmar, KoneCranes, SANY, Heli

Technical Parameters:

Parameters: Vehicle configuration   FD150
Performance Rated load   15000
Load center   600
Mast tilt angle (front/rear) º 6/12
Overall dimensions Length mm 7200
Width mm 2550
Height mm 3460
Mast lifting height mm 3000
Fork size (L*W*H) mm 1800X200X90
Min. turning radius mm 5050
Max. travel speed (with load) Km/h 22
Lifting speed (with load) mm/s 240
Gradeability (with load) % 20
Weight Kg 17000
Tyre Front   4X12.00-24/20PR
Rear   2X12.00-20/18PR
Wheel tread Front mm 1850
Rear mm 2130
Wheelbase mm 3600
Min. ground clearance mm 270
Engine Model   YC6J175-T302
Rated power KW 129
Max. torque N.m 710



2. Safety & Comfort Upgrades

  • Load-hold counterbalance valves
  • Grease-free composite bushings
  • 360° reflective tape
  • Optional load scale system
  • Camera-ready bracket included
